A poorly installed HVAC system can waste up to 30% more energy, increase costs, and create safety risks. Here’s how to ensure your system is set up correctly:
- Common Issues: Duct leaks, incorrect refrigerant levels, poor airflow, and misconfigured controls.
- Key Checks: Inspect ductwork, air handlers, thermostats, and condensing units. Measure airflow, temperature splits, and system performance.
- Standards to Follow: Use ANSI/ACCA 310 and ASHRAE guidelines for proper testing and calibration.
- Tools Used: Smart probes, airflow grids, and digital power meters for non-invasive performance checks.
- Hiring Tips: Look for certified professionals with NATE and R-410A certifications, proper licensing, and a clear quality control process.
How to perform an HVAC Inspection
Steps to Check HVAC Installation Quality
Inspecting an HVAC installation involves evaluating key components and performance metrics to ensure everything functions as it should. Professional technicians rely on specific tools and methods to confirm the system meets both comfort and energy efficiency standards.
Inspect System Components
The first step is a thorough check of the physical parts. Each component must be installed correctly based on the manufacturer’s guidelines.
| Component | Inspection Focus |
|---|---|
| Ductwork | Proper sealing, insulation, and secure connections |
| Air Handlers | Correct positioning, leveling, and drainage setup |
| Thermostats | Accurate placement, calibration, and wiring |
| Condensing Units | Stability, clearance, and mounting accuracy |
Technicians also inspect refrigerant line insulation and ensure the condensate drain has the right slope for proper drainage [2].
Measure Airflow and Temperature
Specialized tools like TrueFlow grids are used to measure airflow (CFM) and compare it to the manufacturer’s specs [4]. Temperature checks are also critical, including:
- Return and supply air temperatures
- Condenser and refrigerant line temperatures
- Supply register temperatures
The temperature difference between the return grille and supply register should stay within 1°F for a 20°F equipment temperature change [1].
Assess System Performance
Performance tests confirm whether the system delivers at least 90% of its rated BTUs [1]. Important measurements include:
| Parameter | Target Range |
|---|---|
| Fan Airflow | Within 15% of design specifications |
| Temperature Split | Between 16-22°F |
| Static Pressure | Below the maximum specified by the manufacturer |
Technicians also use power meters to check energy use [4] and advanced airflow tools to ensure proper air distribution, following ASHRAE standards [3].
Once these checks are complete, further calibration using advanced tools can fine-tune the system for optimal performance.
Non-Invasive Testing and Calibration Methods
Non-invasive testing checks HVAC performance without tampering with sealed components. This approach ensures systems meet design specifications while keeping all parts intact.
ANSI/ACCA 310 and Related Standards
The ANSI/ACCA 310 standard outlines how to evaluate HVAC performance using specific metrics:
| Measurement Type | Target Parameters |
|---|---|
| Air Temperatures | Return air dry/wet bulb, supply air temperature |
| Component Temperatures | Suction line, liquid line, condenser entering |
| Power Consumption | Amp draw, wattage readings |
| Airflow Performance | Static pressure, CFM verification |
The Mowris Non-Invasive Temperature Diagnostic (NTD) method works alongside these standards, using design temperature differences and system benchmarks for a thorough evaluation [4].
Tools for Non-Invasive Testing
Today’s diagnostic tools allow technicians to gather accurate data without interfering with system components.
Temperature Measurement Tools
- Smart probes with clamps for precise readings
- Digital psychrometers for assessing air conditions
- Infrared thermometers to check surface temperatures
Airflow Verification Equipment
TrueFlow grids measure CFM without disrupting ductwork, identifying variations within 15% of design specifications [4].
Power Analysis Tools
Digital power meters track energy use in real-time, helping technicians:
- Confirm proper amp draw
- Measure actual power usage
- Spot potential efficiency problems
sbb-itb-09ea625
Meeting Industry Standards
Following industry standards ensures HVAC installations meet safety, performance, and efficiency requirements. These standards work alongside the testing and calibration methods discussed earlier, creating a structured approach to quality assurance.

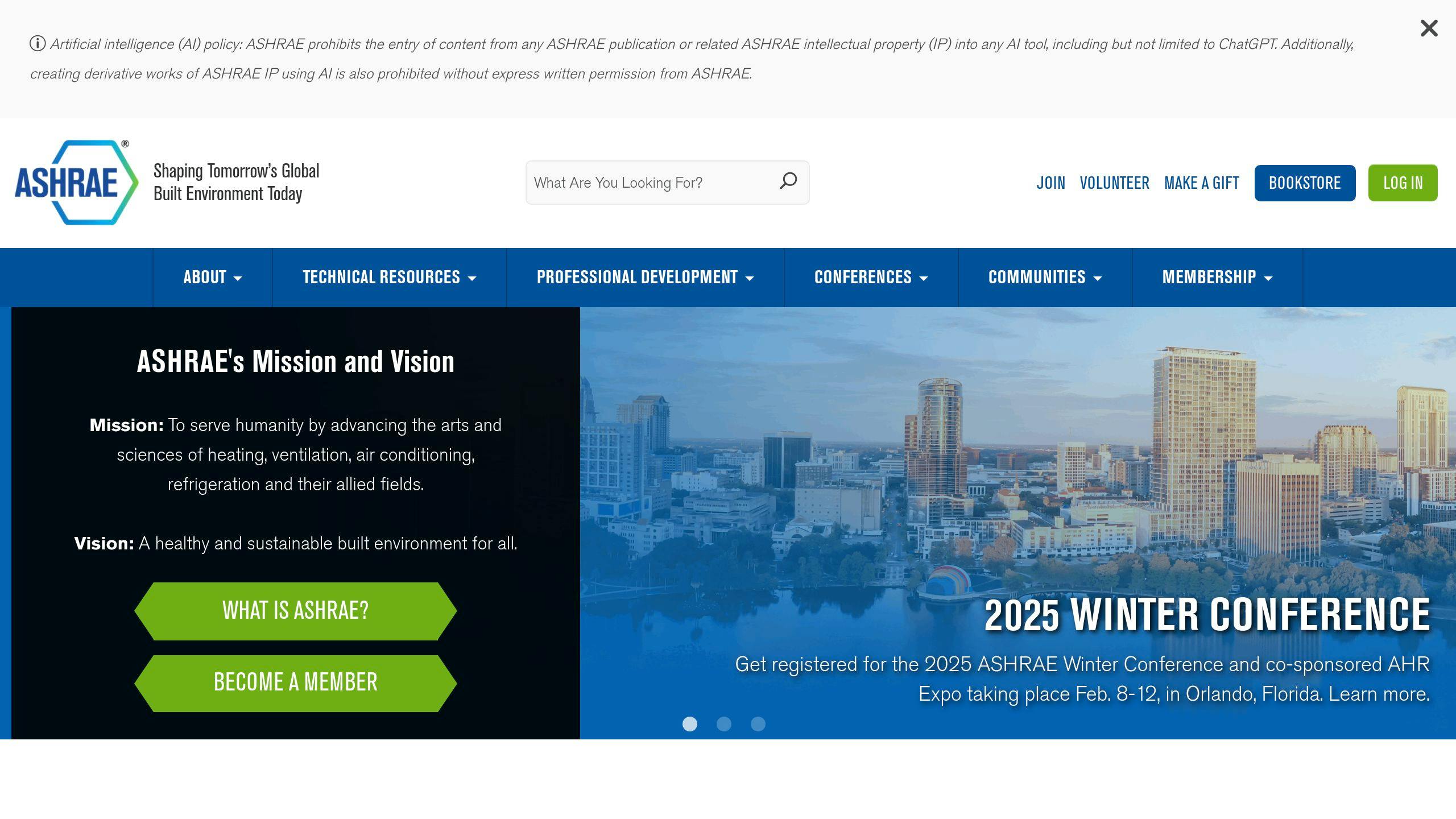

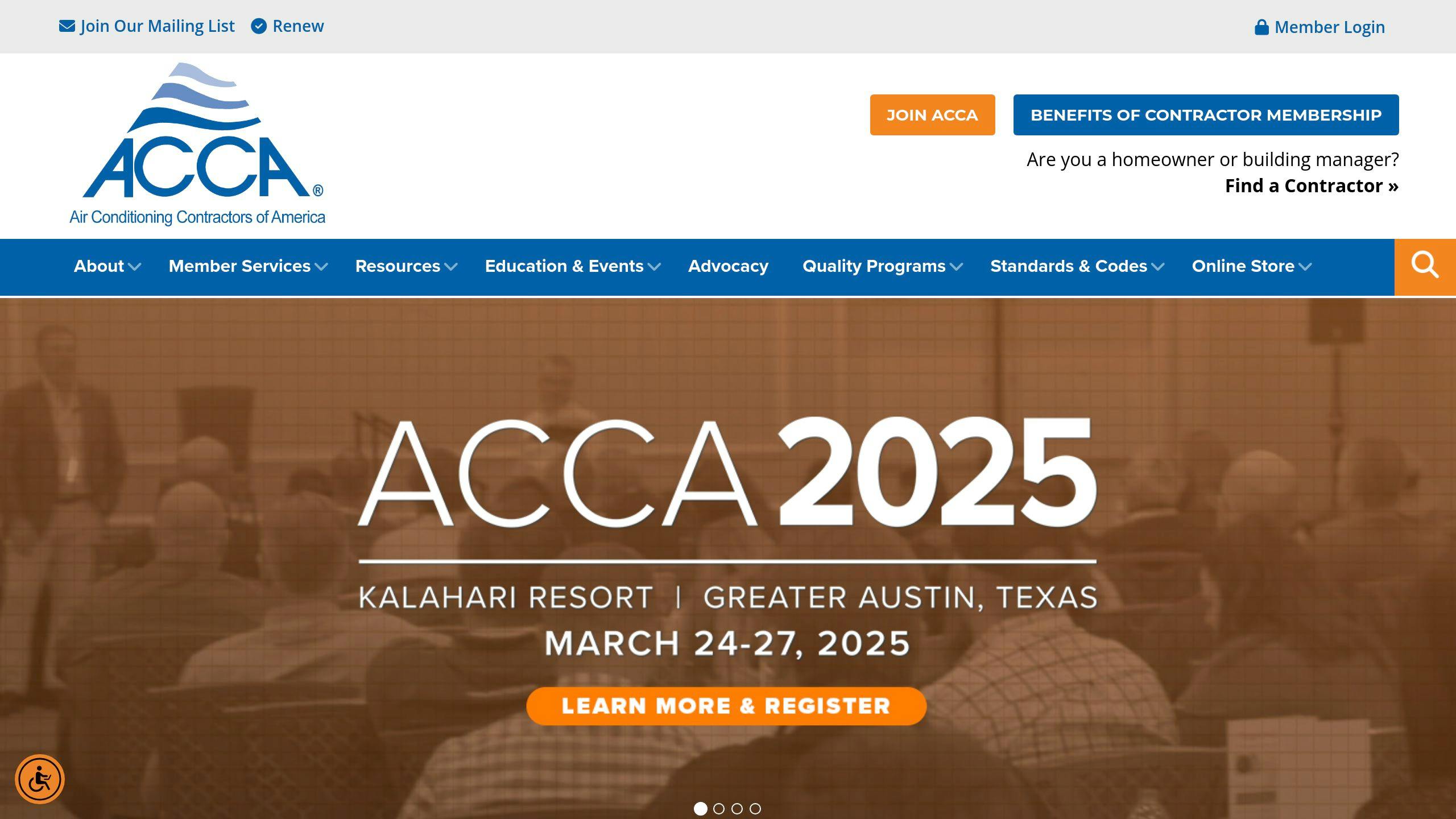

ACCA and ASHRAE Guidelines
ACCA and ASHRAE set essential guidelines for achieving high-quality HVAC installations. For example, ACCA Standard 310 uses standardized blower CFM and temperature metrics to verify system performance [4].
| Testing Phase | Key Verification Points |
|---|---|
| Design & Installation | Equipment sizing, selection, and placement |
| Commissioning | System performance and controls |
| Maintenance | Ongoing operation and efficiency |
ASHRAE standards focus on:
- Choosing equipment suited to building requirements
- Accurate system sizing calculations
- Meeting energy efficiency standards
- Maintaining indoor air quality [3]
Proper documentation ensures these standards are consistently applied and simplifies any future troubleshooting.
Recording and Benchmarking Results
Keeping detailed records of installation data is crucial for effective maintenance. Important documentation includes:
| Measurement Category | Required Data Points |
|---|---|
| Air Properties | Return air dry/wet bulb temperatures |
| System Temperatures | Condenser entering, suction line, liquid line |
| Performance Metrics | Airflow measurements, power consumption |
| Control Settings | Thermostat programming, system controls |
“By following ACCA and ASHRAE standards, HVAC professionals can verify proper system operation and identify any issues early on” [4].
Using advanced tools like power meters, temperature clamps, and airflow devices helps ensure accurate data collection and reliable benchmarks [4]. It’s also essential for HVAC professionals to engage in ongoing training to stay current with these standards. Ultimately, the key lies in selecting skilled professionals who can implement these practices effectively.
Choosing Reliable HVAC Installation Services
Hiring skilled HVAC professionals is essential for ensuring a proper installation and long-lasting system performance. These experts handle critical tasks like testing and calibration with accuracy.
What to Look for in HVAC Professionals
When selecting an HVAC contractor, focus on specific qualifications that reflect their expertise:
| Qualification | Importance |
|---|---|
| NATE Certification | Validates technical skills and knowledge in the HVAC field |
| R-410A Certification | Confirms experience with modern refrigerants |
| Licensing and Insurance | Ensures compliance with laws and protects against risks |
| Quality Control Process | Highlights dedication to proper installation practices |
Make sure the contractor:
- Holds NATE and R-410A certifications
- Possesses state licensing and insurance
- Provides detailed written proposals and adheres to ACCA standards
- Offers warranties and documents all testing results
After identifying qualified contractors, review their services to ensure they meet your specific needs.
Why Consider Longhorn Services
In the Dallas/Fort Worth Metroplex, Longhorn Services stands out for their professional HVAC installations and customer-focused approach:
- Same-day appointments
- 24/7 emergency service availability
- Warranties on repairs and installations
- Use of OEM parts
- Free warranty options
- Interest-free financing plans
Their technicians follow strict testing protocols to verify installations, including airflow checks, temperature assessments, and performance tests based on ACCA Standard 310.
| Service Feature | Customer Advantage |
|---|---|
| Fast Response Times | Reduces system downtime and ensures prompt assistance |
| OEM Parts | Ensures proper fit and performance |
| Comprehensive Warranties | Protects your investment over time |
| Special Discounts | Helps customers save on costs |
Longhorn Services also adheres to Energy Star standards, helping customers improve system efficiency and lower energy bills [5].
Key Points for Checking HVAC Installation Quality
Making sure your HVAC system is installed correctly is essential for its performance and lifespan. The U.S. Department of Energy notes that inefficient installation can lower system efficiency by as much as 30% [3]. This makes thorough quality checks a must.
Main Points to Keep in Mind
HVAC quality checks should follow established protocols like ANSI/ACCA 310, which outlines clear steps for system assessment [4]. Important checks include system output testing, airflow measurement, and duct leakage testing. These ensure the system performs as expected and meets efficiency standards.
Technicians rely on specialized tools to run precise, non-invasive tests. For example, tools like temperature clamps and airflow meters are critical for evaluating the system without affecting sealed components.
Verification should cover detailed testing, performance comparisons, and adherence to industry standards. Following ACCA and ASHRAE guidelines ensures safety and efficiency benchmarks are met [3].
When hiring HVAC professionals, confirm they follow these protocols and provide a full report of the testing results. This documentation not only validates the installation but also helps maintain efficiency and extends the system’s life span.
FAQs
What to check after HVAC installation?
After an HVAC installation, it’s important to confirm everything is functioning as it should. Here are the key checks recommended by experts:
Thermostat and Ductwork
Make sure the thermostat is calibrated correctly. Test both heating and cooling modes to confirm it reads temperatures accurately and the system responds properly [2]. After the system has been running for about 10 minutes, check the duct temperatures. A difference beyond 5% could point to leaks or poor insulation [1][3].
System Component Testing
Properly installed components are key to keeping your HVAC system running efficiently. Pay attention to these areas:
| Component | What to Check | Warning Signs |
|---|---|---|
| Air Handler | Stability when mounted | Unusual noise or movement |
| Condensing Unit | Proper leveling | Blocked airflow |
| Refrigerant Lines | Insulation condition | Frost or oil stains |
| Electrical Connections | Secure wiring | Loose or disconnected wires |
Performance Verification
Check that the system’s BTU output is delivering at least 90% of its rated capacity [1]. Professionals use tools like temperature clamps, airflow meters, and digital power meters to ensure the system is performing as expected [4].
These checks help confirm your HVAC system is set up to run efficiently, protecting both its performance and your investment.
